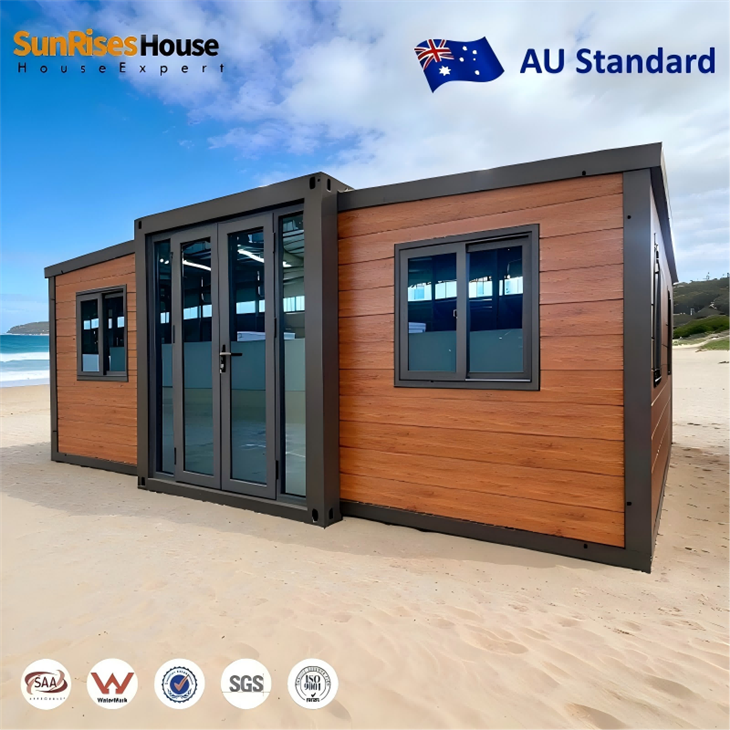

20ft Expandable Thawv Tsev Australia Standard

• Loj: 20 Foot (10FT, 20Ft, 30Ft, 40Ft muaj)
• Loj: 5900x6300x2480mm (High-sab saum toj 5900*6300*2560)
• Qhov hnyav tag nrho: 3180 kg
• Sab nrauv thiab sab hauv phab ntsa cladding customized

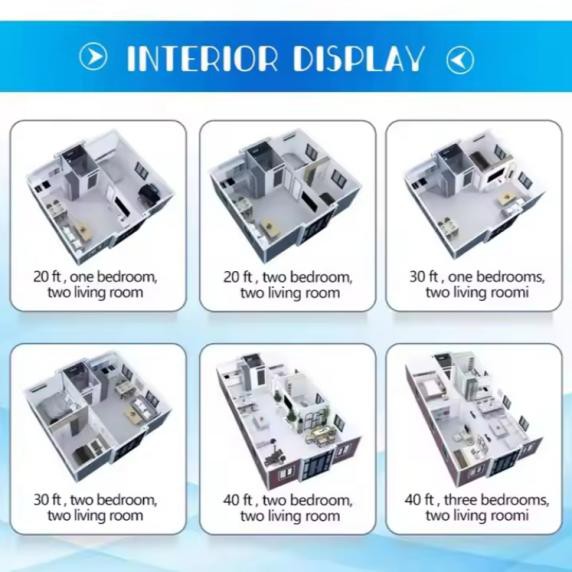

Lub 20 FT Expandable thawv lub tsev Australia Standard tuaj yeem muab tais rau hauv ib qho kev sib cog lus 20 ko taw hiav txwv freight thawv loj (kwv yees li 5900 x 2200 x 2480 millimeters) rau kev thauj mus los yooj yim; Tom qab nthuav tawm, nws tsim ib chav dav dav (kwv yees li 5900 × 6260-6480 × 2480 millimeters, 37-38 square metres), feem ntau teeb tsa nrog 2 chav pw, 1 chav nyob, 1 chav ua noj, thiab 1 chav dej. Chav tsev layout tuaj yeem kho tau.

1. Cov qauv kev nyab xeeb:

Lub ntsiab ncej yog ua los ntawm 3 hli tuab kub-dip galvanized square steel / tsis xwm yeem C- zoo li cov hlau, uas ua tau raws li Australian AS 4964 tus qauv qauv; Cua tsis kam ntawm 0.6kN / m2, seismic tsis kam ntawm ntau dua los yog sib npaug rau 6 qib, ru tsev load- bearing peev 0.9kN / m2, av load- bearing muaj peev xwm ntawm 3.0kN / m2, haum rau muaj zog cua raws ntug dej hiav txwv ntawm Australia thiab inland seismic zones.
2. Kev ua raws li dej thiab hluav taws xob:

Lub tshuab hluav taws xob ua haujlwm ntawm 220-240V / 50Hz, ua raws li Australian cov qauv kev nyab xeeb hluav taws xob; Cov khoom siv dej thiab cov dej ntws tawm tuaj nrog cov ntawv pov thawj Watermark thiab tuaj yeem txuas ncaj qha rau hauv lub nroog cov kav dej.
3. Kev tiv thaiv hluav taws thiab kev tiv thaiv ib puag ncig:

Cov phab ntsa / ru tsev yog ua los ntawm 50-75mm EPS / pob zeb wool sandwich panels, nrog rau qhov ntsuas hluav taws kub ntawm B1; cov ntaub ntawv yog recyclable thiab tsis pub siv pov tseg, ua tau raws li Australian ib puag ncig yuav tsum tau.

4.Product Application Scope:

Lub tsev txawb yog ua raws li tus qauv steel chassis, uas tuaj yeem muab tau los ntawm ntau qhov chaw ua ke. Xws li chav sib tham, tsev so, chav ua noj, chav dej thiab lwm yam. Tus qauv dav yog 2. 4 meters, qhov siab 2. 2 meters, 4 mus rau 12 meters nyob rau hauv ntev.

5. Cov khoom zoo:

Yooj yim disassembly, superior kev ua tau zoo, ruaj khov thiab ruaj khov, zoo shockproof kev ua tau zoo, waterproof, fireproof thiab anticorrosive, lub teeb yuag. Lub tsev yog tag nrho cov qauv, nrog ib lub thav duab, phab ntsa yog steel phaj, muaj ntoo veneer, tuaj yeem tsiv teb tsaws tag nrho, kev pabcuam lub neej tuaj yeem ncav cuag ntau tshaj 30 xyoo.
